Air energy water heater is one of the common types of water heaters. It is a product that started late but is very popular. The principle and equipment of air energy water heater are different from ordinary electric water heaters, so the installation method is very different. So how to install an air heater ? The following decoration house decoration network Xiaobian will bring you the installation process of air energy water heater for your reference.
How to install an air energy water heater ?
First, the air host air heater installation process to install

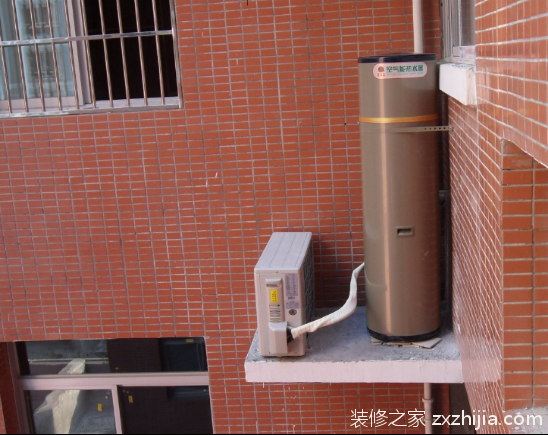

1. The installation of the air energy main unit is the same as the installation of the outdoor unit of the air conditioner. Can be installed on exterior walls, roofs, balconies, and floors. The air outlet should avoid the windward direction.
2. The distance between the main unit and the water storage tank shall not exceed 5 meters, and the standard configuration shall be 3 meters.
3. The distance between the main unit and the surrounding walls or other obstructions should not be too small.
4. If the rain canopy protects the air from wind and sun, care should be taken to ensure that the heat absorption and heat dissipation of the heat exchanger of the main unit is not hindered.
5. The main unit should be installed in a solid foundation and ensure that it is installed upright and fixed with anchor bolts.
6. Do not install the control panel in the bathroom to avoid affecting normal work.
Air energy water heater installation process 2, storage tank installation

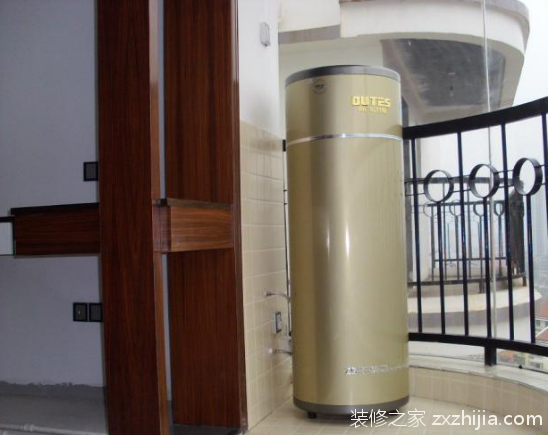

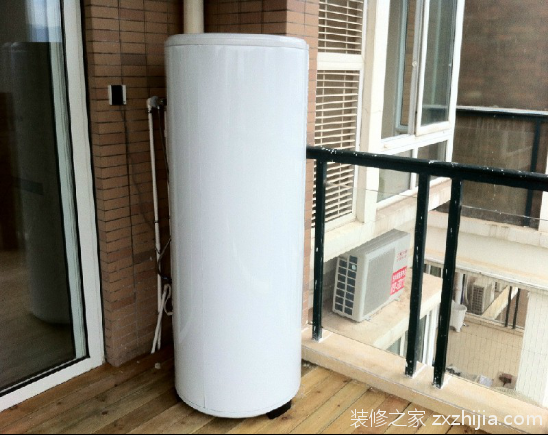

1. The water storage tank can be installed outdoors with the air energy outdoor unit, such as balcony, roof, floor, or indoors. The water storage tank must be installed on the ground. The foundation of the installation is solid and must bear a weight of 500kg . It cannot be hung on the wall.
2. Valves are installed near the storage tank and at the interface between the water pipe and the hot water pipe. The water outlet of the storage tank must be connected to a PPR tube of 1.5 m or more .
Air energy water heater installation process three, water connection
1. Connect the PP-R pipe to the water storage tank according to the diagram and seal it with the raw material tape.
2. Connect one end of the check valve to the water pipe and the other end to the water inlet of the storage tank.
3. Fill the water: Open the tap water inlet valve and open the tap in the hot water pipe. Start filling the water until the water tap overflows, and close the tap. Store water for leak detection to ensure no water leakage. For the first time, you must ensure that the water in the tank is full before plugging in the power.
Air energy water heater installation process four, heating pipe connection
1. Drill a Ф 70 pipe hole in the wall between the storage tank and the air main unit. The hole should be slightly inclined to the outside. Wrap the cables of a certain length and length with a plastic cable ties, pass through the drilled pipe holes, and put the wall pipe jackets on both sides.
2. Remove the caps on the water tank connection pipe, screw the thick and thin pipes to the joints on the storage tank thickness pipe, and tighten them with a wrench.
3. Unscrew the cap of the thick and thin connecting nozzles of the high pressure valve and the low pressure valve of the main unit. Screw the other end of the thick and thin connecting pipe to the working inlet of the water tank, and the pipe of the thick connecting pipe of the working medium outlet. Tighten with a wrench. (Note: The thick pipe connects the three-way valve to the upper joint of the water tank).
Air energy water heater installation process five, electrical connection
1. The socket must be grounded reliably.
2. The capacity of the power socket to be equipped should meet the current power requirements of different models of the host. The power outlet must be reliably grounded .
3. Install the water temperature sensor probe into the probe tube in the middle of the water tank and fix it.
Air energy water heater installation process six, pipeline exhaust
1. Remove the cap from the adjustment port of the low pressure valve and high pressure valve.
2. Connect the vacuum pump interface to the fluorine injection port.
3 , to ensure that the vacuum is qualified, the pumping time is not less than 20 minutes. If it is inconvenient to evacuate, R22 refrigerant can be used for emptying and leak detection. At the same time, the residual pressure of residual refrigerant gas does not exceed 0.05MPa .
4. Turn the valve core of the low pressure valve and high pressure valve counterclockwise with the inner six wrench to fully open , re-close all the caps, and tighten.
5 , leak detection: use soapy water to check the connection of each pipe and each cap, whether there is leakage, if any, must be tightened with a wrench to not leak, absolutely no leakage.
The above is what Xiaobian brought to you.  How to install an air energy water heater ? Air energy water heater installation process  I believe that everyone has a basic understanding of the installation of air-energy water heaters after reading this article . If you want to know more about decoration consultation, please click to enter the decoration knowledge channel !
