Engine Watch
· Design inspiration from the vehicle engine / interior / body structure · pay tribute to Bugatti Chiron · Cylindrical mechanical movement PF390, with flying tourbillon · Movement patented: Triangular barrel connection system · One patent pending: 12° hinged case · Including the world's smallest ball bearing · Providing rose gold And platinum versions, each limited to 10 pieces, and the same limited edition of 10 pieces of titanium
The Bugatti Chiron's power, reliability and performance are shocking: the model has won the title of "the world's strongest and fastest car" and is the latest product of the Molsheim luxury car manufacturer. It combines many qualities into one and shows the charm of the model. And unique personality. Parmigiani has been working with Bugatti since 2004, enriching the essence of the supercar and creating a unique collection of watches. All in all, Bugatti Type 390 shines. Parmigiani patent Movement PF390 specifically for this outstanding watch collection development, extraordinary quality, comparable to the 1500 horsepower Bugatti Chiron super sports car equipped with a four-engine turbo W16, into the movement of the cylinder type case, at the same time with two Serial barrels provide 80 hours of power storage. Through the worm screw, the transmission of information from the tubular structure to the vertically positioned dial is achieved. In addition, the movement is designed in a modular structure that can be removed from the case as if the engine were to be removed from the supercar for major modifications. Therefore, the Bugatti Type 390 is like a super sports car inspired by its inspiration.

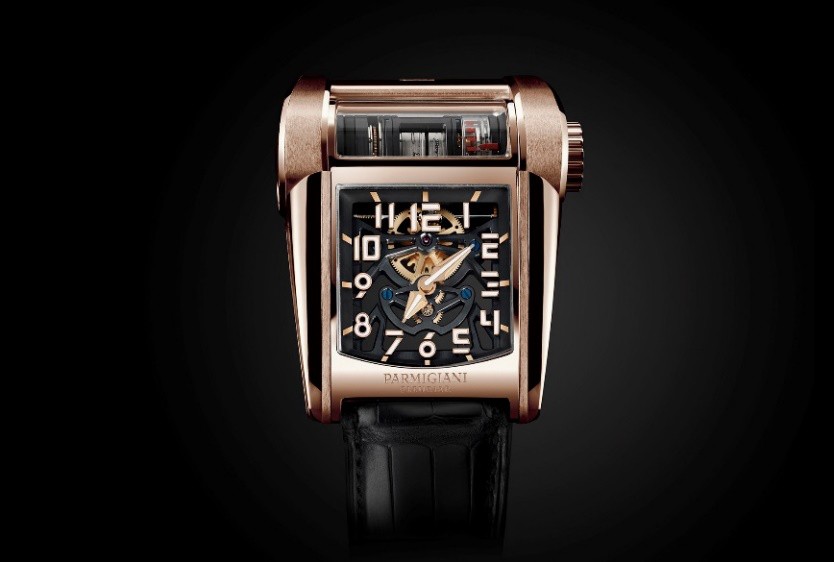

The most important characteristic of the new Parmigiani Bugatti Type 390 watch is the design of the engine type watch, which is a spectacle in the field of traditional watch design. No frills or pure decorative elements: All designs are designed for performance and essential functions. Manufacturers said: "Apply the appropriate technology where necessary." Therefore, almost all designs are based on the ultimate goal: performance and reliability.
Pameligny and the legendary car brand Bugatti have been working together since the beginning of this cooperation. As early as 2004, Parmigiani began to rewrite the rules and draw inspiration directly from the techniques applied by Bugatti Veyron. In fact, the watch industry did not have such design precedents until the watchmakers at the Parmigiani watch factory were equipped with the Bugatti Type 370 shape watch designed with the launch of the Bugatti Veyron 16.4. Since then, Parmigiani has continued to advance along its pioneering path and has worked tirelessly to firmly incorporate the Bugatti series into the design of the 21st century watch. In the Bugatti brand maxim: "Dare to be a world leader", this phrase also inspired Parmigiani to design innovative watches with proven technology (eg Bugatti Type 370, Bugatti Type 370 Centenaire , Bugatti Super Sport, Bugatti Vitesse and Bugatti Super Sport Sapphire).
Watch shape, Bugatti Chiron's soul
Bugatti Type 390 belongs to the latest work of the famous watch series, and after four years of research and development, the original intention has not been changed. Of course, inspired by the world's fastest car, Parmigiani has taken it for granted that an innovative solution has been developed! In fact, with the delivery of the first Bugatti Chiron stunning models, Parmigiani also unveiled the Bugatti Type 390 veil. The watch is unique; its superior performance and carrying technology aims to demonstrate the spirit of Bugatti Chiron in the form of a watch. The Bugatti Type 390 engine watch fusion innovation and new solutions show a unique design with a horizontal cylinder structure.
For the model, the Bugatti Chiron is equipped with an 8-liter 1500 hp quad-turbocharged W16, which pushes the supercar to a top speed of 420 km/h (limited to highway use); for the watch, the Bugatti Type 390 carries a Calibre PF390 movement. With cylinder-type "engine" design and two serial barrels - to pay respect to the saddle-shaped tank on the Bugatti models, and with the flying tourbillon, can provide 80 hours of power storage. The new "engine" is reduced in size, ensuring that its diameter does not exceed its 60 second Tourbillon regulator and displays seconds. After the regulator diameter has been determined based on the required inertia (balance weight inertia 10 mg.cm2), the entire structure (including the barrel for powering the "engine") forms a regular cylinder based on this measured value. The key is the patent applied by the Parmigiani watchmaking factory when developing this unique manual winding mechanical movement.
While the "engine" breaks through the limits of traditional watch design, the watch itself also rewrites the rules in many ways. Designers draw inspiration from the structural principles of the Bugatti Chiron supercar, choosing the engine/interior/body design. Specifically, the horizontal cylinder movement ("engine") is connected to the dial and vertically positioned display ("interior") through a worm screw; the entire movement assembly incorporates rose gold or titanium metal case and sapphire crystal glass watch Mirror ("body"), through the table mirror can enjoy the continuous movement of mechanical devices.
The world's smallest ball bearing <br>The movement is designed in a modular structure incorporating numerous breakthrough solutions that can be removed from the case – just as the engine can be removed for major modifications. In fact, the movement PF390 is distinguished by its gearing and configuration. The goal is the same for all watches: the energy is transferred from the barrel to the escapement. However, from the perspective of the cylinder structure of the movement, the alternate configuration of commonly used large-small-large-small-pinion gears is replaced by a transmission using three planetary gear trains. All three planetary gear trains are equipped with a central drive wheel, three planetary gears and a metalized fixed ring gear. This planetary gear train is a new type of component that has never before been used in the watch industry transmission gears.
The new planetary gear train uses the world's smallest ball bearing: only 1.28 mm in diameter and contains 12 ceramic balls with a diameter of 0.2 mm. The ball bearings used by Bugatti Chiron may vary greatly in size, but they are technically very similar! In the three planetary gear trains, each planetary gear train is equipped with three bearings, for a total of nine ball bearings. Another key point is that the assembly does not need to be lubricated: there are significant advantages in terms of reliability and maintenance.
In addition, Parmigiani has designed a pusher fastener that replaces four common components on the movement of a regular watch (pull, gear, clutch, and clutch spring on the winding mechanism). , thereby performing the double function of winding and setting the time of two barrels. This optimized design helps improve the performance of the movement. By replacing the four parts with a single part, the movement is made simpler and more reliable, reducing maintenance. This is exactly what the brand pursues in any technological progress. The push rod fastener mechanism is used to wind the two coaxially mounted barrels (energy storage) in series.
The triangular coupling design of the Calibre PF390 movement allows automatic centering of the two barrels, while the in-line connection guarantees a constant energy transfer - just like the Chiron supercar with a fuel pressure regulator and speed adjustment To ensure the best timing. Then, energy is transmitted through the planetary gear train to the flying tourbillon regulator, and at the chain end the tourbillon oscillates at a frequency of 4 Hz (28,800 vibrations/hour). The variable inertia balance wheel and Breguet balance spring were manufactured at Atolalpa, one of the makers of Parmigiani. Like the Bugatti Chiron, the assembly provides excellent volume-to-power weight ratio and exceptional rate stability, allowing the Bugatti Type 390 to enter the extraordinary timepiece series. Another innovation for the Calibre PF390 movement is the torque limiter, which protects the movement during winding to prevent any accidental breakage through the free return function.
"Conformity and spirit"
The PF390 movement is inspired by the Bugatti Chiron components. The PF390 movement is equipped with a bevel gear differential to display power storage. By designing the display tube (made of sapphire) on the periphery of the movement, the Parmigiani watch factory has developed this unique structure in which a power storage transmission wheel drives a fixed ring gear in the tube. Therefore, by means of two guide rings on the conical pivot axis, the power storage condition is read on the display tube by means of a fixed pointer.
The cylinder-type "engine" Calibre PF390 movement benefited from another advanced technology developed by the Parmigiani watch factory: Coaxial mounting of bridges, thus ensuring absolute assembly accuracy. This precision is more important in the two bridges and main plywood plates that are commonly used in mechanical watches; the PF390 movement is divided into seven layers and a total of 302 components. The black slab bridge highlights the high-tech features of the movement and its modular structure.
In terms of movement structure, the cylinder-type engine block is fixed to the display module in a “linkage†type principle—inspired by the piston installed in the automobile engine, and fixed by a component shaped like a connecting rod cover.
The Bugatti Type 390 movement is based on the Bugatti brand motto "Conformity". Another unique feature is the use of worm screws to transfer information from the transmission wheel to the dial. In addition, the worm screw is used for the transmission of information from the "engine cylinder" to the dial display screen by two 90° angular movements. It marks the first instance of watchmaking. The angle transmission function has three goals: 90o energy transfer can be achieved, allowing energy to pass from the closed cylinder circuit and into the dial display. The central planetary gear train is responsible for transmission to the dial. In addition, this worm screw eliminates all the indentation problems common in ordinary wristwatches (caused by the sliding of the pointer on the spindle). Finally, the spring at one end of the worm screw ensures regularity and comfort when setting the time on the movement through the crown.
High-tech craft <br>The application of innovative construction techniques does not affect the traditional style of all watches. This is the strict high-tech process we talk about: The ultimate precision is matched with the rare mastery of watchmaking experts. In fact, on this futuristic watch, the Calibre PF390 movement has an extraordinary look on the entire assembly. The two barrels are enclosed in a titanium metal tourbillon frame that controls the force without deformation, and the characters are imprinted - one with the Louis Chiron signature and the other with the words "le vieux renard" (the old fox). The nickname of a legendary rider.
In view of the watch's innovative features and unique solutions, the Calibre PF390 movement heralds a new era in the Parmigiani Bugatti collection. In fact, the movement was specially designed and built to become the development platform for the future Bugatti watch series.
Peeking into extraordinary mechanical properties <br>The black openwork dial inherits the spirit of Bugatti Chiron, making it a lightweight and high performance watch. Luminous coating's inlaid time scale and pointer are in stark contrast to ensure optimal readability. With a 60-second tourbillon, seconds can be read through the magnifying effect of a cylinder-end sapphire crystal.
The case design was inspired by Bugatti Chiron's fluid curves, made of gold (Platinum, rose gold, or titanium, depending on the version), and the lettering “EDITION LIMITEE 10 PIECES†(limited to 10 pieces) on the back. The case was built by Les Artisans Boîtiers, one of Parmigiani's manufacturing divisions. The case is built around a cylinder structure with a water resistance of 3 ATM and can be rotated around its drive shaft (patent pending) by 12° to ensure a perfect ergonomic design around any wrist, thus highlighting the difference. The watch is of exceptional quality and technical excellence, and its extremely complex structure can be appreciated through the large size of the top sapphire crystal glass opening. Through the top and ends of the tubular structure, the sapphire crystal glass mirror invites everyone to learn more about the heart of the incredible complex mechanism of the watch ("engine" and flying tourbillon), and the opening above and below the dial reveals the wrist Many gears are on the table and it is easy to read the time. The crocodile leather strap is provided for Hermès and is fitted with a gold folding clasp.
With Bugatti Type 390, Parmigiani hopes to equip the watch with all the technology and power that reminiscent of Bugatti Chiron, the most shocking supercar on the market today. During the four years of developing excellent watches, Parmigiani watch factory always adhered to the principles and did not compromise. In response to the expectations, the Bugatti Type 390 clearly surpassed those that only printed the logo of the car brand. It can be called a watch, and the spirit of Bugatti Chiron.
