Ancient books are the most vulnerable cultural relics. We often say that they open up and lose 60 years of life. For the purpose of protection and utilization of cultural relics, the digitization and archiving of ancient books has become a common practice. In China, large public libraries such as the National Library and the Shanghai Library, as well as the ancient books of university libraries such as Peking University and Tsinghua University, have the demand for digitalization of ancient books. Ancient books contain vast knowledge and wisdom. To a certain extent, it represents the height of wisdom that an era has ever reached, and it is also an important reason why Chinese civilization can stretch for thousands of years without interruption.
Digitization is an important means of regenerative protection of ancient books. There are three main forms of digitalization of ancient books: video, which is a high-definition scan of ancient books to achieve image browsing. The full text extracts the full text of ancient books from the image base to form a full-text search library; knowledge base, It is further annotated and indexed on the basis of the full text, which can provide more dimensions and professional applications.
Different from the scroll, it can be scanned as long as it is unfolded. Most of the ancient books can't be completely spread after being bound into a book. However, in order to protect the cultural relics, the gutters can't be taken apart; the ancient book pages are “the bobbin leaves†(the ancient books bind the pages back to back, with text One side is bound outward to form a paper tube), and the ancient paper is usually thin. If it is scanned directly, it will reveal the text on the back. It is necessary to arrange a person to lining the "coil leaf" with a softer paper than the rice paper. Visualization also has special requirements for scanning machines, such as cold light source and non-contact scanning as much as possible to reduce the loss of ancient books.

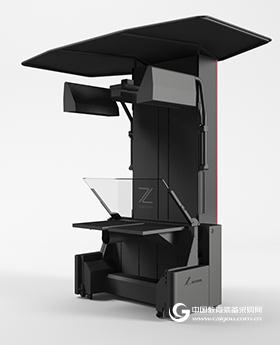

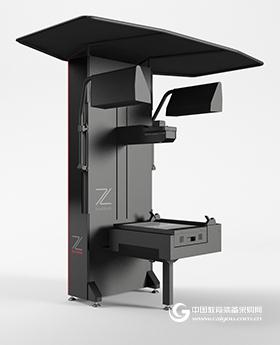

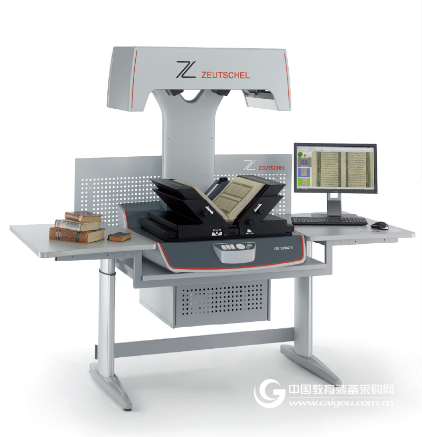

The number of OS12002V professional ancient document scanners uses projection-type non-glare cold light source technology to provide extremely sufficient protection for precious ancient books and document digitization. The high-precision true color scanning lens perfectly reproduces the original details of the original, unique 90°. The V-type platen is especially suitable for digitizing precious materials that are bound into a book and cannot be fully opened. It automatically opens the press glass, adaptively adjusts the falling speed and pressure of the V-glass, and protects the literature to the utmost extent. The user-friendly design provides users with the information. A safe, reliable and ergonomic operating environment.
Technical Parameters:
Description: Top-mounted scanning head, desktop non-contact scanning, suitable for single pages or bound into manuscripts of cultural relics, ancient books, books, newspapers, calligraphy and painting maps.
Scan size: 600 (2 x 300) x 450 mm (> 2 x super A3
Manuscript table: The book can be up to 150 mm thick, and the V-shaped table can be adjusted by 90°; the sides of the V-shaped table can be adjusted, the center, the height, and the width of the spine.
Scan mode: 42-bit color acquisition | 24-bit color output 14-bit grayscale acquisition | 8-bit grayscale output 1-bit black and white acquisition | 1 bit black and white output
Optical resolution: 600dpi
Output resolution: 100-600dpi
Scanning speed: 3.8 seconds (400dpi)
Scanner interface: IEEE1394 FireWire interface
Image format: all standard formats, such as TIFF uncompressed, TIFF G4, JPEG, JPEG2000,
PDF, multi-page TIFF, BMP, PCS, PNG, etc.
Scanning Software: OS12 Scanning Software
Image Processing Software (optional): Deskew, Despeckle, Flip, Black Edge, Mask, Sharpen, Bend Correction, Crop, Black and White Scan and Dynamic Threshold.
Perfect Book (optional): Dual scanning system, perfect 3D scanning, spine bending correction and automatic document detection.
Electrical requirements: 220V/50Hz.
Volume (W x Dx H): 1023 x 880 x 1025 mm
