Product Manual:

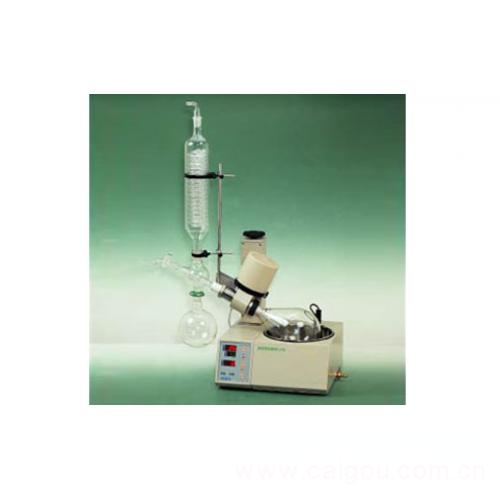

Rotary evaporators are widely used in the pharmaceutical, chemical, and biopharmaceutical industries for concentration, crystallization, drying, separation, and solvent recovery. The device works by applying vacuum conditions to reduce the boiling point of solvents, allowing them to evaporate more efficiently. Under constant temperature and controlled rotation, the solution spreads as a thin film on the inner surface of the rotating flask, significantly increasing evaporation efficiency. The vapor is then condensed using a high-performance glass condenser and collected in a receiving flask, making this method ideal for handling heat-sensitive biological materials that can degrade at higher temperatures.
Key Features:
The advanced floor-standing rotary evaporator is designed with a large-capacity, wide-mouth evaporation flask, which increases the evaporation surface area. It operates under reduced pressure within a water bath while rotating and heating, enabling efficient diffusion and evaporation of the sample. This equipment is perfect for applications such as concentration, drying, extraction, and solvent recycling. It’s an essential tool in scientific research and industrial production across various fields including chemistry, pharmaceuticals, food processing, environmental protection, and academic institutions.
Technical Specifications:
| Model | RE-52A |
|---|---|
| Capacity | 50–2000 ml |
| Lifting Mechanism | Manual screw lift |
| Speed Range (rpm) | 0–120 |
| Heating Bath Temperature Range (°C) | RT–100 |
| Cooler | Longitudinal, double serpentine tube with small capacity cold trap |
| Maximum Rotating Flask Capacity (L) | 2 |
| Receiving Flask Capacity (ml) | 250 ml |
| Total Power (W) | 1060 W |
This rotary evaporator is an essential piece of equipment for laboratories looking to improve efficiency and accuracy in solvent removal processes. Its user-friendly design, combined with reliable performance, makes it suitable for both small-scale experiments and larger production settings.
