How to install the balcony drying rack? Let’s take a look at the clever answer.

1, hand crank installation

The hand shaker is usually installed on the right side of the balcony, which is convenient for habitual use. The distance from the ground is preferably about 120cm, depending on the height of the user. Installing the handler requires fixing with an expansion screw.

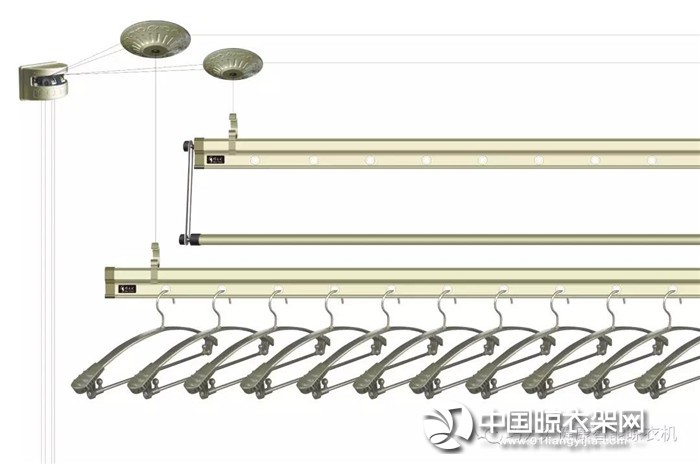

Balcony hand drying rack

2, top seat installation

On the top of the balcony to be installed on the clothes rail, first measure the diameter of the light on the top of the balcony with a steel ruler. Then mark the installation mark between 15cm-30cm on both sides of the lamp. The length should be determined according to the size of the balcony. Then measure the distance between the mark and the edge of the balcony and confirm the width of the top mount according to this distance. Then measure the length of the balcony with the lamp as the center. According to the length of the clothes bar, the two sides of the lamp are equally divided into 80cm-100cm. There are four intersections with the measuring distance of the width. These four intersections are the mounting positions of the top seat of the hanger. After the position is confirmed, drill with electric drill. After drilling the hole, fix the four top seats with expansion screws first. If the bar is longer than the conventional size, this distance should be adjusted accordingly.

3, the installation corner

The corners are preferably mounted on the top of the balcony or on the top of the wall. The corners are 50-70 cm from the movable top. A triangular angle of 45° is required in the middle of the movable top, ensuring the same vertical line as the hand-mounted position.

Balcony electric washing machine

4, steel wire connection

There is usually two steel wires in a clothes drying rod. First, one wire is taken out, one end of the steel wire is passed through the bearing wire groove of the corner, and then passes through the movable wheel bearing wire groove of the movable top seat. The wire groove is located at the upper part of the top seat. Then, through the bearing wire groove of the fixed end seat, the wire is perpendicular to the ground, the top cover is inserted from the wire, and the top cover is clamped. The other end of the wire also passes through the other hole of the bearing wire groove of the corner, and then passes through the other movable wheel bearing wire groove of the movable seat. The wire groove is located under the same top seat, so that the wire is perpendicular to the ground, and then the top cover is taken from the wire. Nested, carded top cover. The other wire is installed in the same way.

5, drying rod connection

At the head end of each wire, wear a ball and tie it in the ball; then pull the ball to the top seat. At this time, pull the wire from the corner to form a double-strand wire, which is stuck in the hand. One end of the device; relax the wire in the hand crank, lower the hanging ball, pass the lifting rod through the hanging ball, screw it tightly at the hole of the hanging ball, nail the screw; finally install the plug at both ends of the drying rod.

The installation of the balcony washing machine needs to be in place, so that it will not damage the washing machine, and it will save unnecessary troubles. It is hoped that the installation steps can help you easily install the washing machine.
