Since the country requires all vehicles to be equipped with standard data interfaces before leaving the factory, engineers only need to use equipment that can read OBD data to quickly and easily monitor multiple systems and components of company vehicles and competitive vehicles, including engines and catalytic conversion Device, particle trap, oxygen sensor, emission control system, fuel system, GER, etc., so as to directly obtain a number of vehicle basic states and emission-related parameters.
The German IPETRONIK brand high-performance data recorder supports the collection of multiple protocol signals, including the OBDâ…¡ protocol signal. This article mainly describes how to use the OBD protocol signal acquisition function of the data logger.
System composition:
1. Hardware: IPETRONIK data recorder, including IPElog2, M-LOG V3, Fleetlog2; OBD connection cable, one end connected to the vehicle OBD interface (6 high 14 low), one end connected to the recorder CAN interface (7 high 2 low);
2. Software: IPEmotion, configure the data recorder, real-time data display, etc .; OBD protocol options.

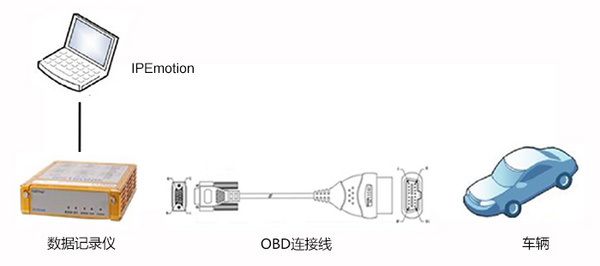

System icon:
Instructions:

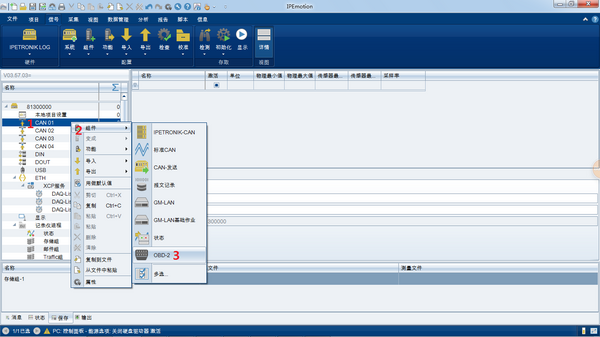

1. Right-click the name of the CAN channel connected to the vehicle's OBD interface-> component-> OBD-2-> tick the signal to be collected-> modify the signal sampling;

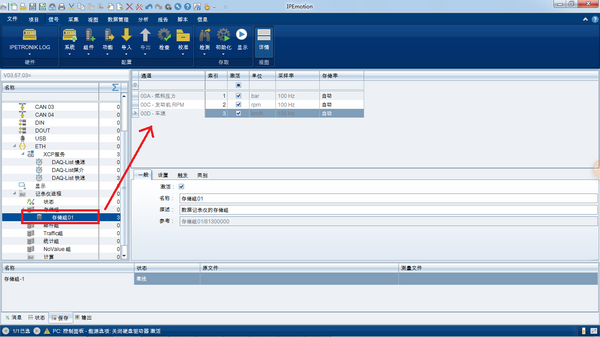

2. Add the checked signal to the storage group, and send the configuration to the data logger, the corresponding data signal will be recorded. It can also be displayed in real time in the view like other signals.
